GØGHK & G7HAH

Our Club callsigns can occasionally be heard on the air.
We have equipment, and antennas to use on the bands, from 160M > 23cms.

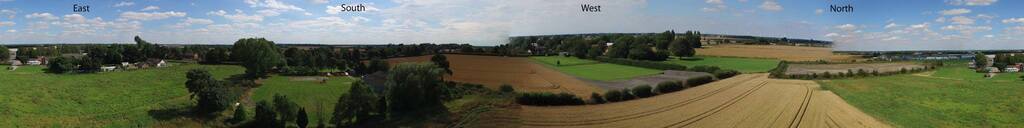

We do quite well with our location, despite not being any height above sea level. Our QTH is pretty flat for miles around with the nearest high ground being 3 miles south east of us.



Finningley SDR

A Web SDR (Software-Defined Radio) is an online radio receiver that lets you tune into and listen to radio signals through a web browser without needing your own physical radio equipment.

We have a few SDR receivers that cover from KHz to GHz that are available for you to listen to online.

We do our best to keep them online but apologies for any outages, it's possibly a software or hardware change at our end, check back again soon.

On the air at Finningley ARS

We like to get on the air with the club station, with HF, VHF and UHF equipment making radio contacts near and far.

Our Club callsigns are GØGHK, and G7HAH. These calls have been associated with us since the time the club was at RAF Finningley, pre 1996.


With our station we like to be able to facilitate what we can't do at home, big antennas, and a large space to experiment with other types of antenna. .

On our 2 main transmitting towers we have:

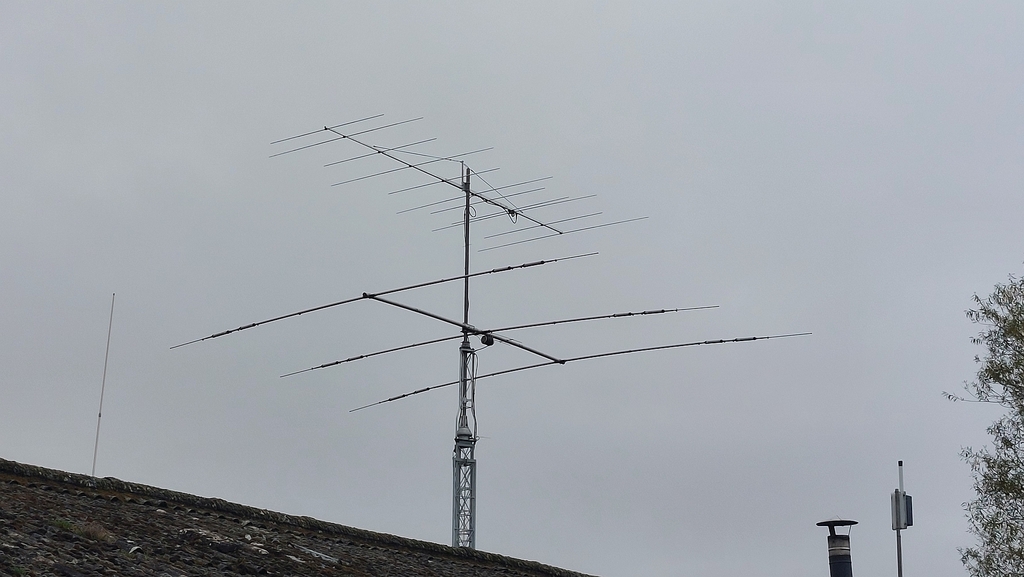

HF tower 60' (18M)

Hygain TH3 20/15/10

Dual band 6m & 4m Yagi - DUAL PA5070-11-6 BG
5el on 50Mhz, 6el on 70MHz
Horizontal 3 wire loop, 50M/180' per side, 600 ohm open wire feed,12:1 transformer, covers 160-6M.

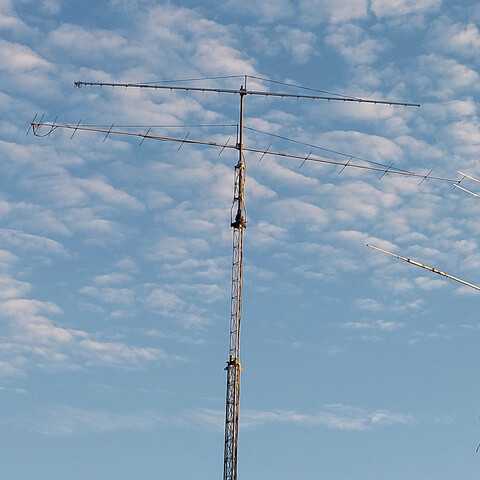

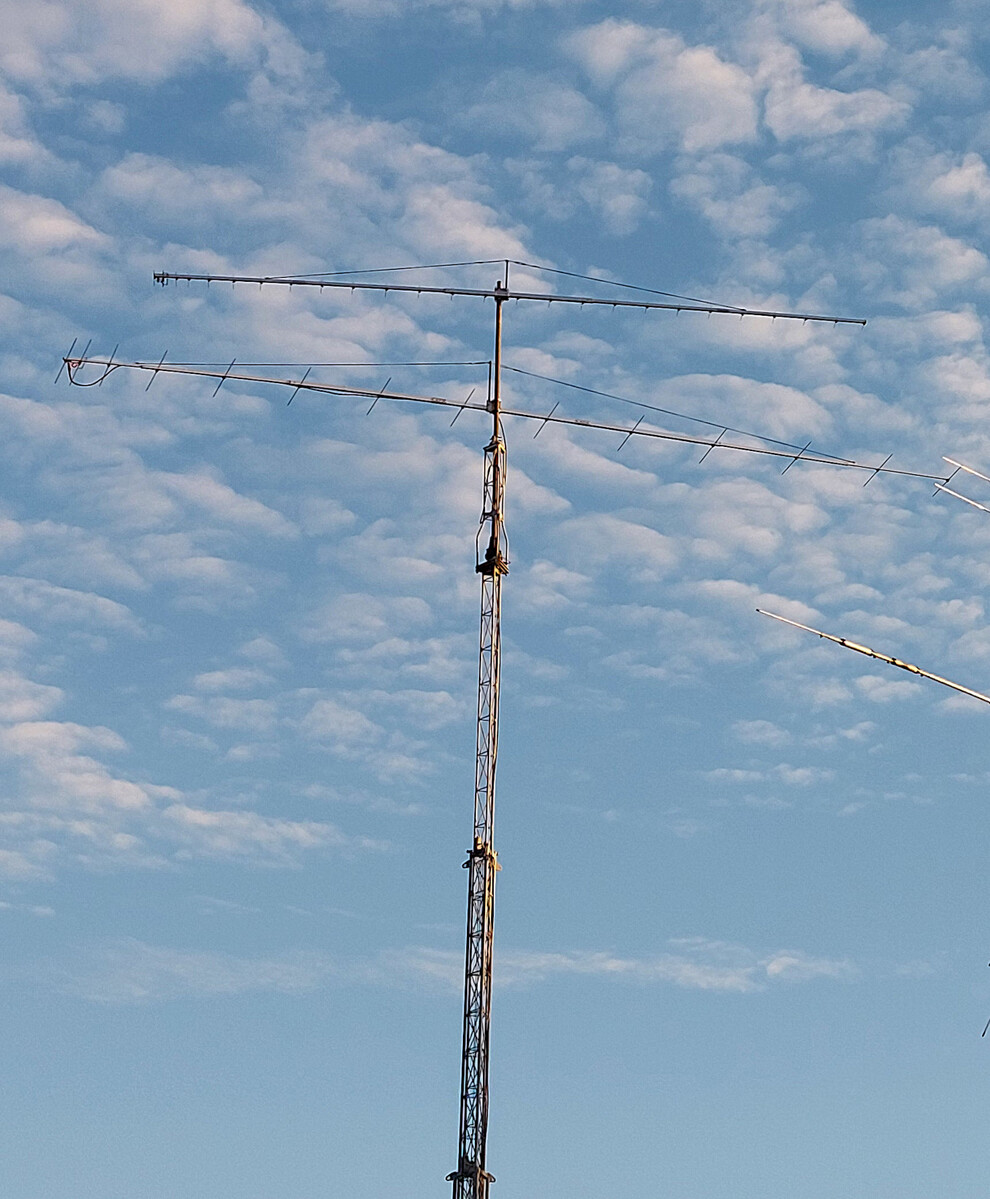

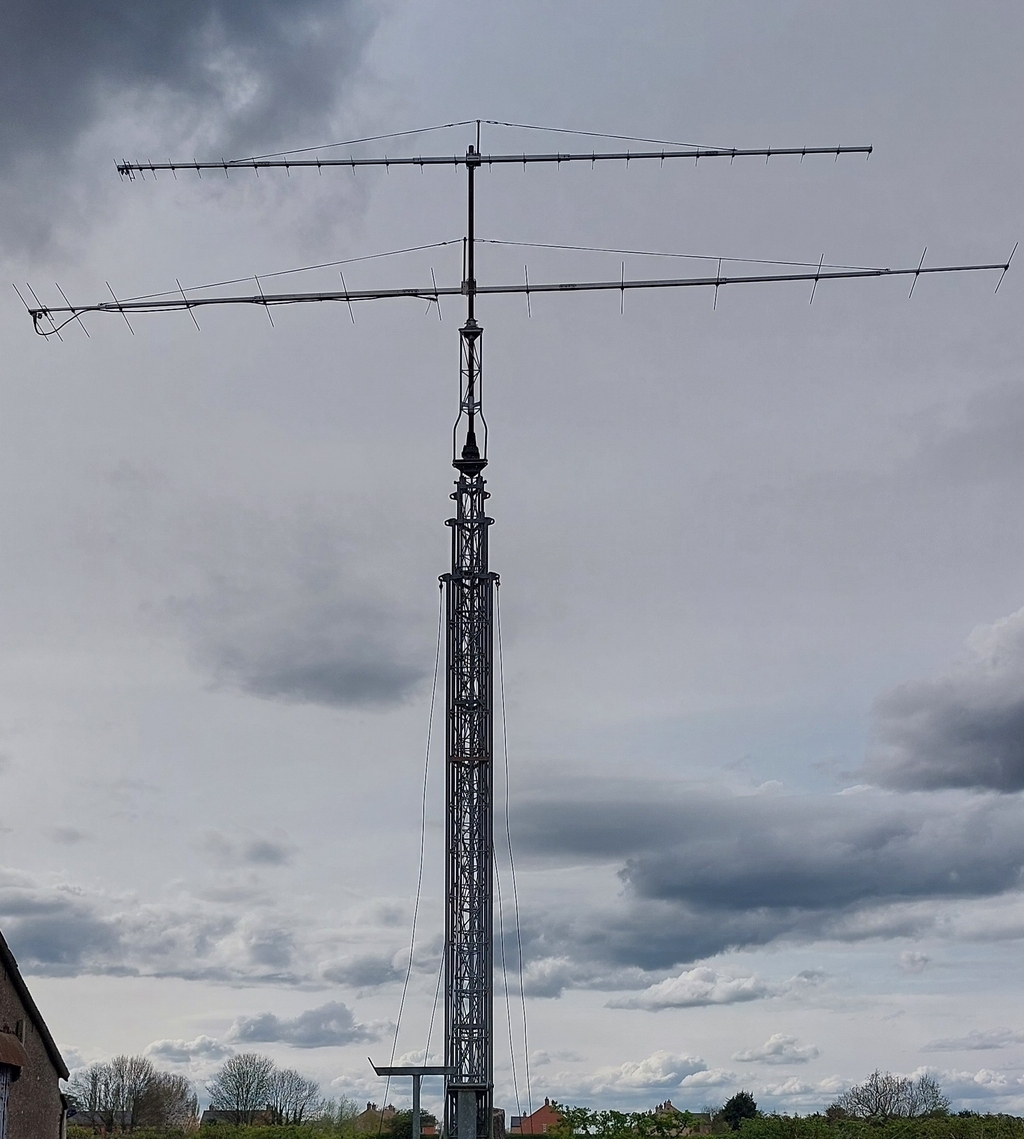

VHF Tower 80' (24M)
1 x 14el 144MHz Yagi - DUAL PA144-14-9-BGE

1 x 23el 432MHz Yagi - DUAL PA432-26-7BGP


Work in progress are dedicated receive only antennas, currently 2 x Amplified Loop antenna, 3M over ground.

144MHz Trophy 2026

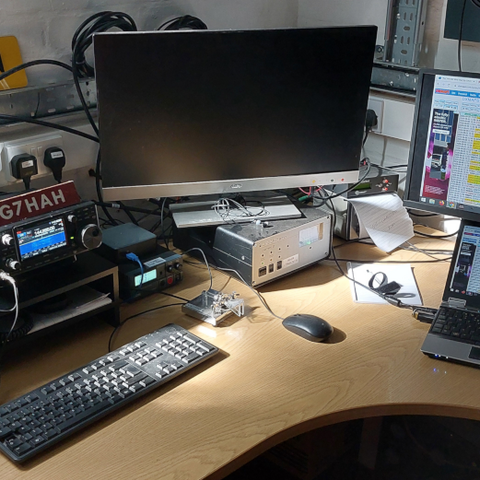

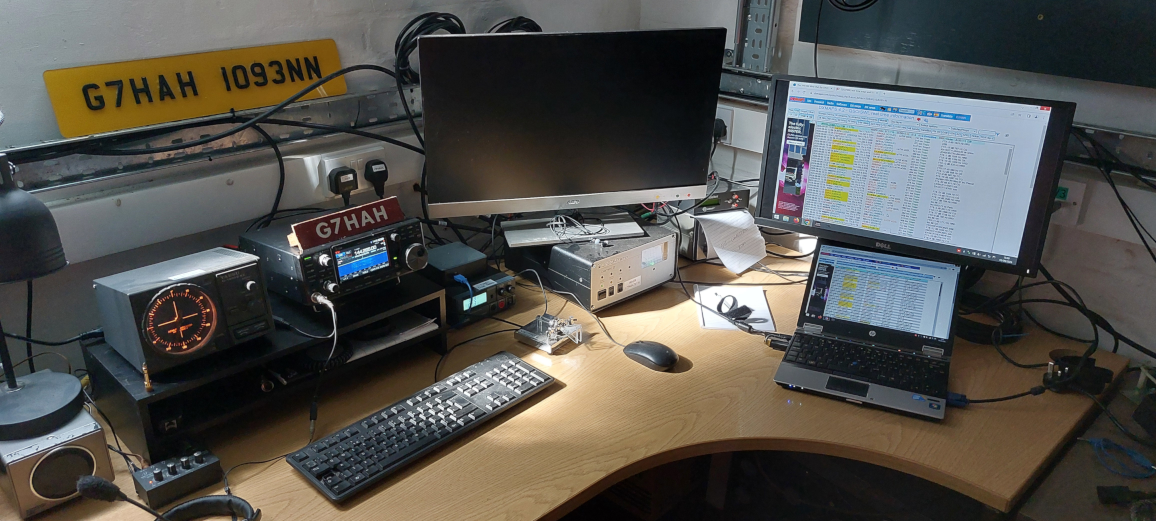

A last minute thing, Martin M0HOM, Steve G1PPA, John G4ATA, and Mike G8FDR operated G7HAH for the contest.
A single yagi station, with moderate power, held it's own against some of the larger stations. This was a nice relaxed effort where we were really making sure our equipment still worked!

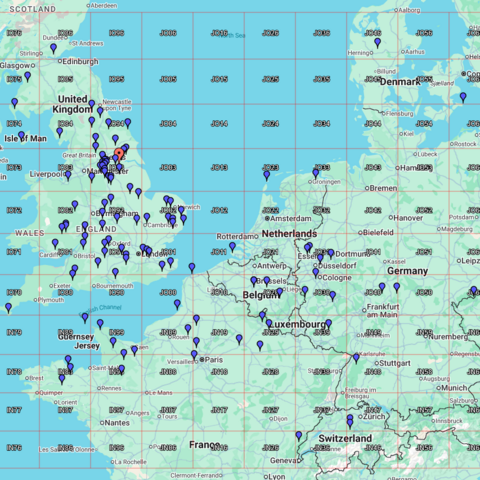

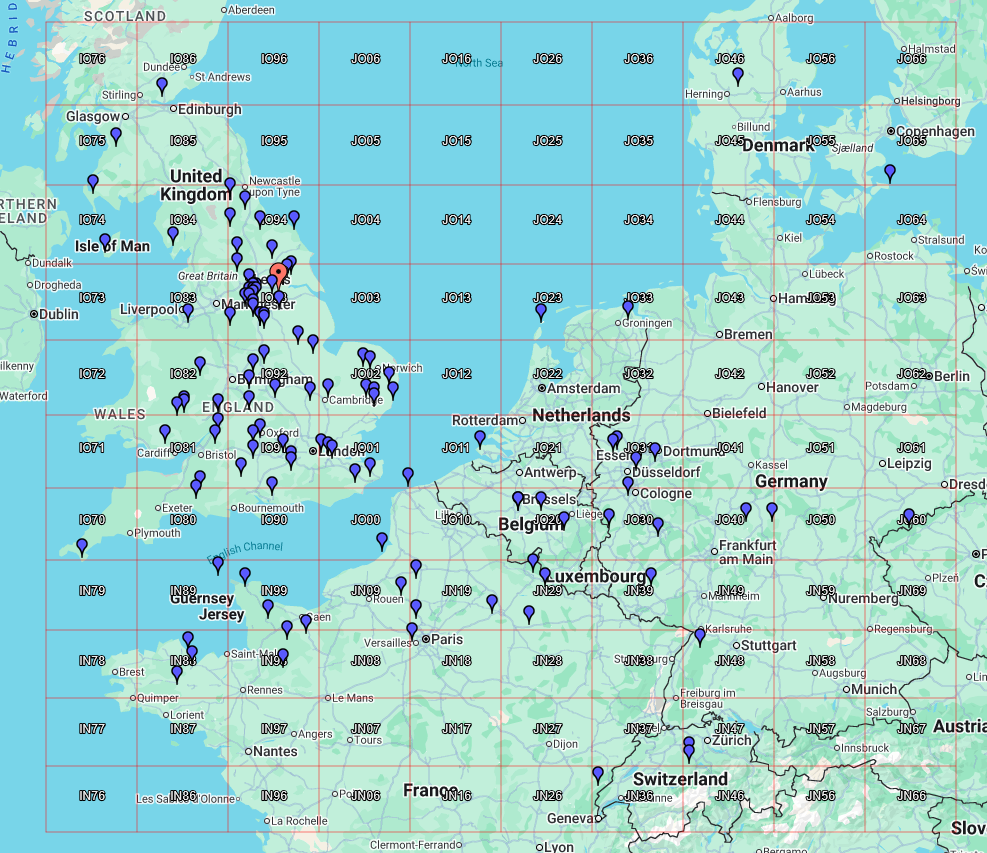

Contest:144MHz Trophy
QSOs: 121
ODX Call: OK4C
ODX KM 1009
DXCCs: 12
WWLs: 40
UK WWLs: 17
